| Place of Origin |
Guangdong China (Mainland) |
| Brand Name |
NBJH |
| Model Number |
LQ-2 |

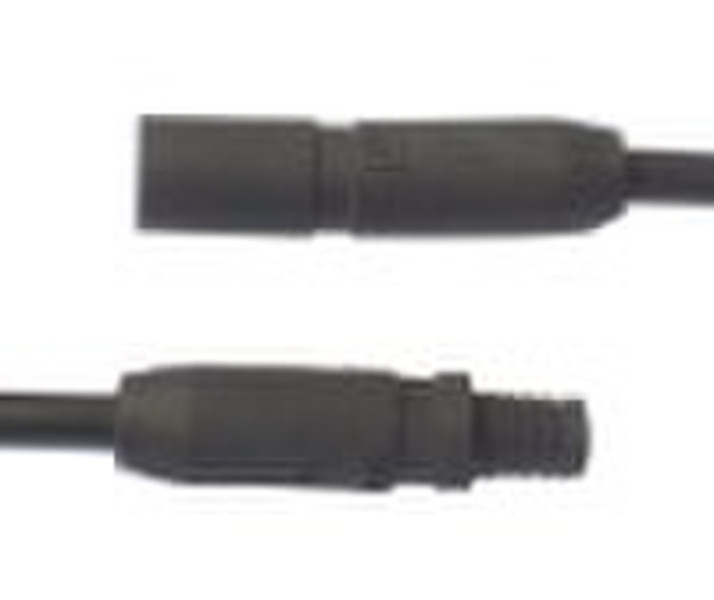

PV solar connector Product Overview: LQ-1 solar cell module cable connector, the connector uses spring within the drum-shaped patch, male and female head and the wiring box and cable used in conjunction with PPO materials, housing has a strong anti-aging, anti-UV capability ; found in outdoor use under harsh environmental conditions required; cable connections using self-locking into a fixed structure and connected. Of male and female head of fixed self-locking with a stable organization, opening and closing freely with MC4 perfect bonding. The product has been certified by TUV. Line: DIN V VDE V 0126-3.Main technical specifications: Maximum working voltage: 1000V DC Maximum Current: 25A Flammability rating: UL94-V0 Pollution degree: 2 Connect resistance: ≤ 5mmΩ Housing protection class: IP67 Connecting Lines: 4mm2 Temperature: -40 +85 °C Security Level: class 2 Insertion force: ≤ 50N Extraction force: ≥ 50N KeyFeatures: Strong anti-aging, anti-ultraviolet function, consistent with outdoor use under harsh environmental conditions; cable connection using riveting and confining means; male and female first mating convenient, without the help of other tools.
